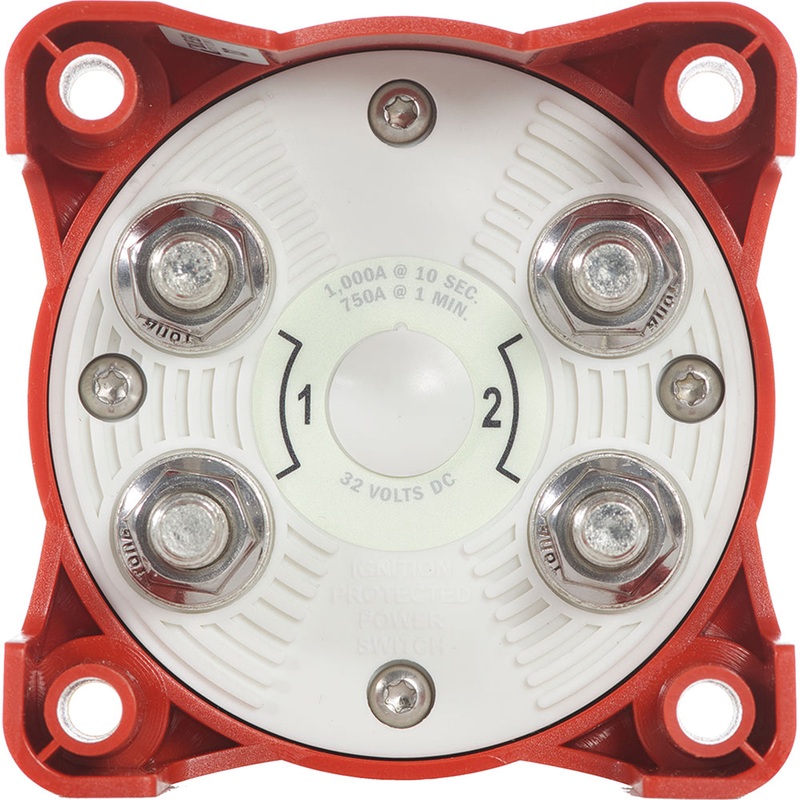

Blue Sea 5511E e-Series Dual Circuit Plus Battery Switch [5511E]

5511e
Dual Circuit Plus Battery Switch

• CE Marked
• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery
  switches
• 3/8″ – 16 tin-plated copper studs for maximum conductivity and
  corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Positions: 1
• AFD: No
• Continuous Amperage: 600a
• Box Dimensions: 3″H x 6″W x 9″L WT: 1.2 lbs
• UPC: 632085551155

Owner’s Manual (pdf)
Brochure (pdf)
