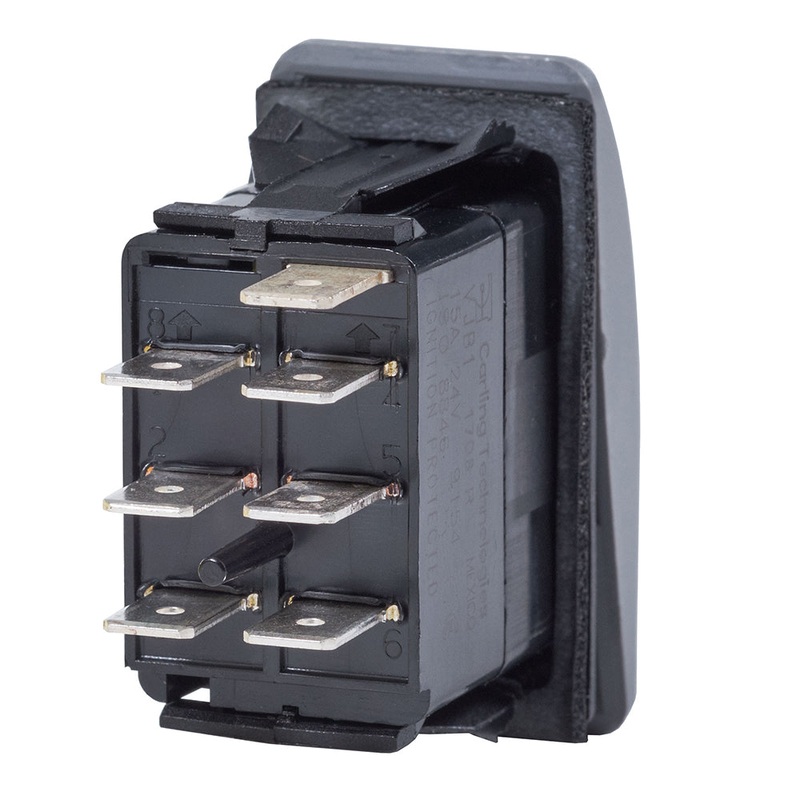

Blue Sea 7936 Contura II Switch DPDT Black – ON-OFF-ON [7936]

Contura II Switch DPDT Black – ON-OFF-ON

Vibration, shock, thermoshock, moisture and salt spray resistant
Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels

Specifications:

• Action: ON-OFF-ON
• Pole/Throw: DPDT – Double Pole/ Double Throw
• Actuator Color: Black – Contura II
• Common Applications: Combining Nav lights or anchor light with shared bulb
• Maximum Amperage: 20A @ 12V / 15A @ 24V
• Amperage Operating Current: 18mA (LED)
• Minimum Operating Temperature: -40 C
• Maximum Operating Temperature: 85 C
• Actuator Position to Light LED: ON
• Embedded LEDs: 2
• Lighting: LED rated 100,000 hours 1/2 half
• Seals: Internal and external gasket panel seal
• Weight: 0.09lb (0.04 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Action: On/Off/On
• Color: Black
• Throw/Pole: DPDT
• Box Dimensions: 2″H x 3″W x 4″L WT: 0.1 lbs
• UPC: 632085079369
