Ritchie F-82W Voyager Compass – Flush Mount – White [F-82W]

Voyager Compass

Features:

• 3 (76 mm) PowerDamp Flat Dial

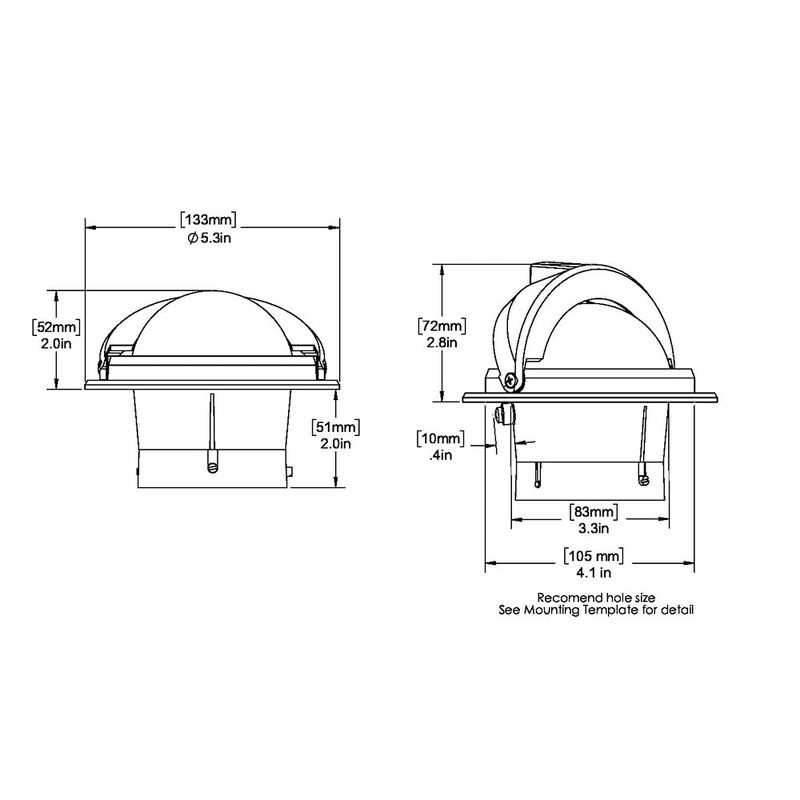

• Easily Installed into a 3 1/2 hole
• Exclusive Built-in Green NiteVu Night Illumination
• Built-in Compensators to Easily Adjust for Deviation
• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
• Powerful DirectiveForce Magnets for Fast Heading Lock-on
• Movable Sun Shield
• 45 Degree Lubber Lines
• High Temperature Composite Construction for Extended Operating Range
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 1lb 8oz (680g)

Notes:

All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.

Specifications:

• Read: Rear
• Lubber Lines: Yes
• Backlight: Yes
• Mounting Style: Flush
• Box Dimensions: 6″H x 6″W x 6″L WT: 1.5 lbs
• UPC: 010342140067
