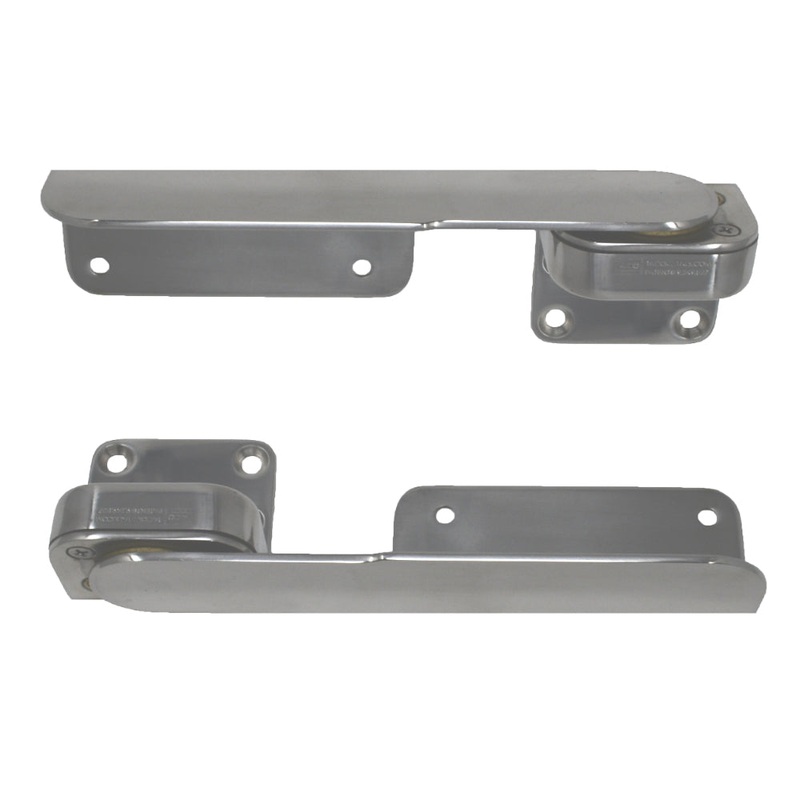

TACO Command Ratchet Hinges – 9-3/8 – Polished 316 Stainless Steel – Pair [H25-0016]

Command Ratchet Hinges – 9-3/8″ – Polished 316 Stainless Steel – Pair

Constructed from high-grade stainless steel and brass, our Command Ratchet Hinge is ideal for sunpads, bolsters and lounge backrests. This heavy-duty specialty hinge has a 15-degree locking inclination and ratchets up to four positions.

Features:

• Highly polished marine-grade stainless-steel Type-316L
• All brass bearings for durability
• Meets ABYC H-31 standards class B* application, 250lb ft of torque load for pair
• 15-degree locking inclination increments starting at 30 degrees
• Easily adaptable to many applications
• Designed for up to 4″ thick cushions
• Returns to horizontal position at 100 degrees
• Countersunk for #10 fastener or 1/4-20 bolt
• Sold in pairs
• 5-year limited warranty

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Brochure (pdf)
