Trident Marine 4 ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [290V4000-S/S]
Trident Marine 4 ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [290V4000-S/S]

Trident Marine 4 ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [290V4000-S/S]

Original price was: $177.99.Current price is: $89.00.

-Decrease product quantity. +Increase product quantity.
SKU: CWR-99749 Category:

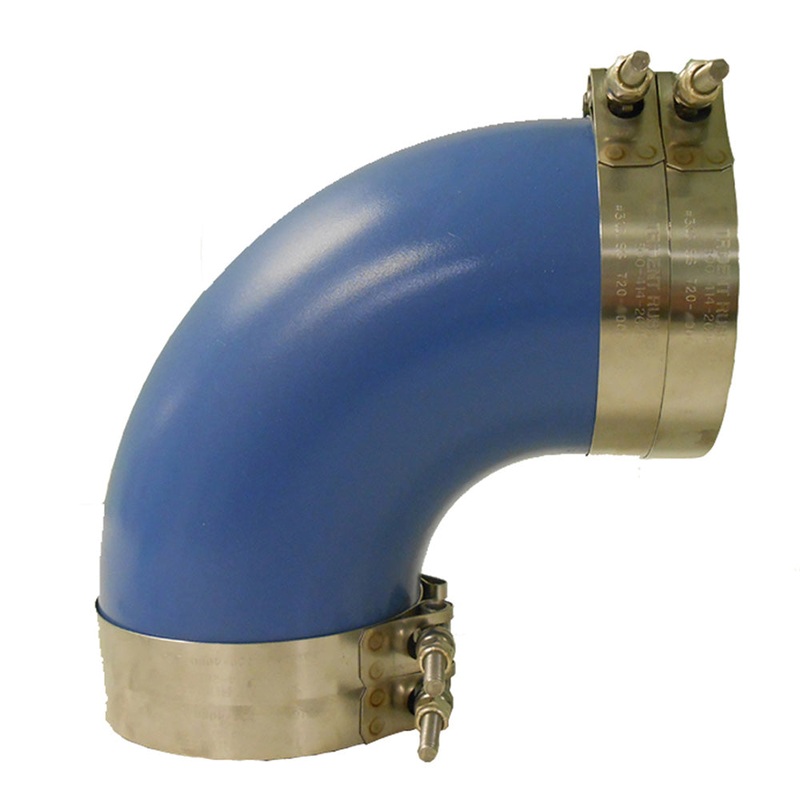

4″ ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover.

Features:

  • Four stainless steel t-bolt clamps
  • Very high temp silicone/EDPM blend rubber – molded
  • This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
  • Blue very high-temperature silicone blended with EDPM rubber at 350F (177C) max continuous

Construction:

  • Color: Blue
  • Temperature Range: up to 350F (177C)

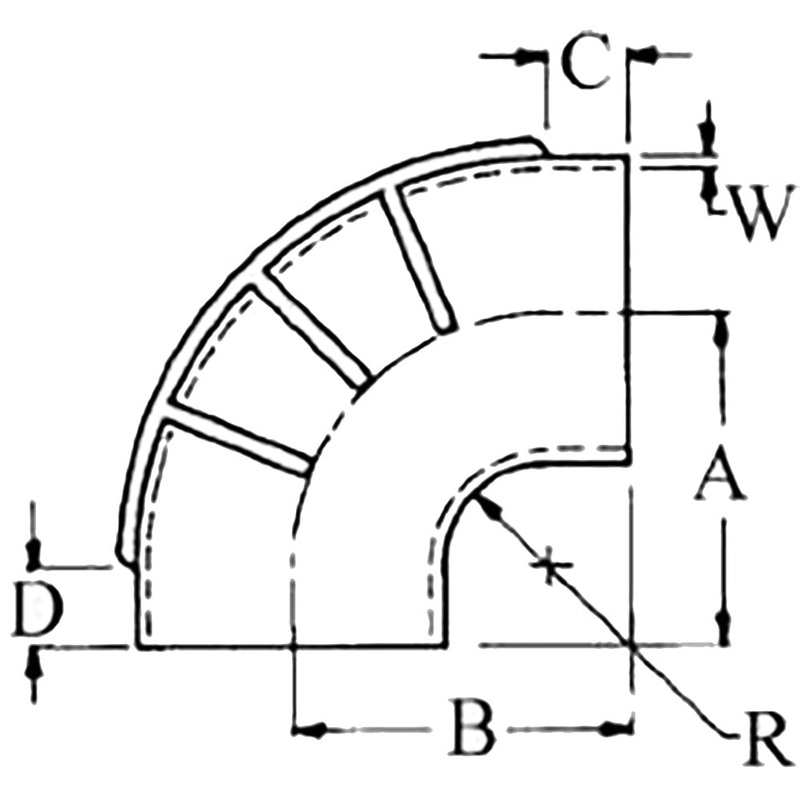

Specifications:

  • Inner Diameter: (inch) 4 / (mm) 101.6
  • A: (inch) 5.75 / (mm) 146
  • B: (inch) 5.75 / (mm) 146
  • C: (inch) 1.75 / (mm) 44.4
  • D: (inch) 1.50″ / (mm) 38.1
  • R: (inch) 2 / (mm) 50.8
  • W: (inch) 0.25″ / (mm) 6.4
  • Elbow Degree: 90 degrees


Quick Guide (pdf)
