Trident Marine 6 ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [240V6000-S/S]

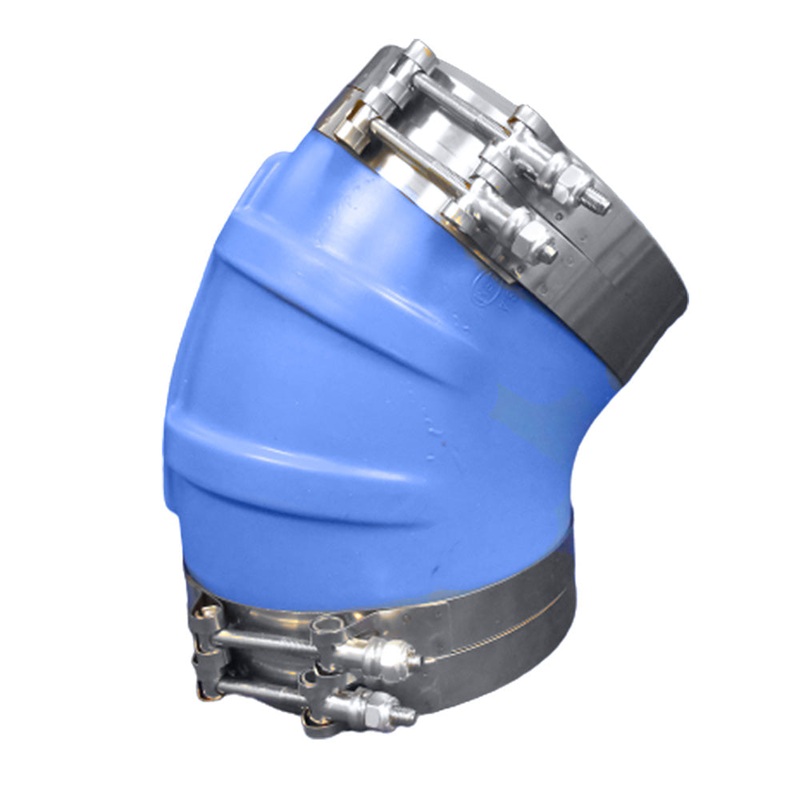

6″ ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6″ I.D. or larger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber – molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350F (177C) max continuous

Construction:

• Color: Blue
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 350F (177C)

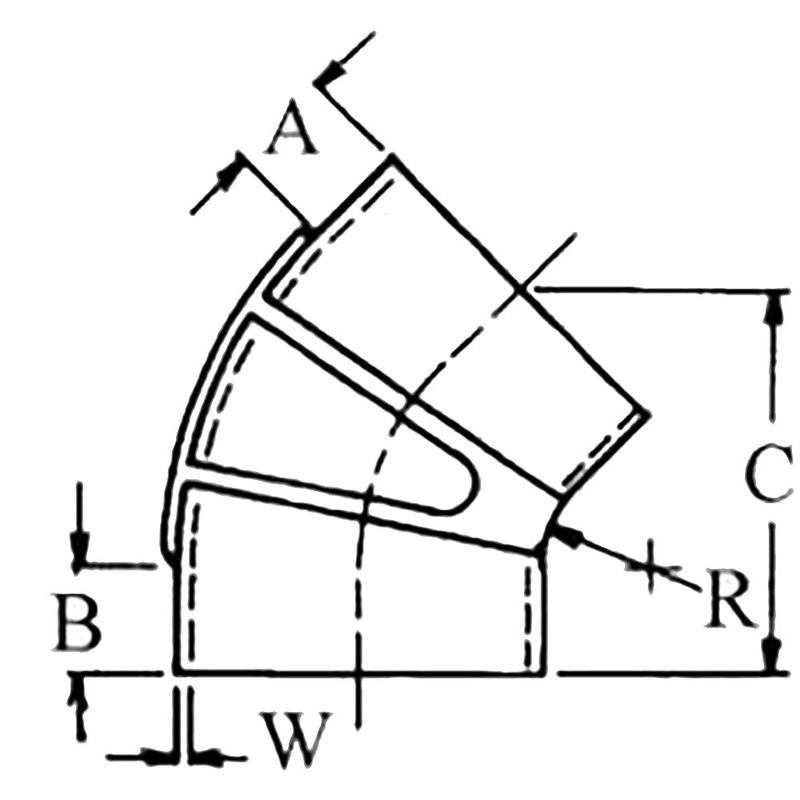

Specifications:

• Inner Diameter: (inch) 6 / 152.4 mm
• A: (inch) 2 / (mm) 5.1
• B: (inch) 2 / (mm) 5.1
• C: (inch) 6.5 / (mm) 16.5
• R: (inch) 1.75 / (mm) 4.5
• W: (inch) 0.25″ / (mm) 6.4
• Elbow Degree: 45 degrees

Quick Guide (pdf)
