Wichard HR Bow Shackle – 14mm Diameter – 35/64 [11240]

HR Bow Shackle – 14mm Diameter – 35/64″

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 11280 / (kg) 5120
• WLL: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 26450 / (kg) 12000
• Weight: (lb) 0.802 / (g) 364

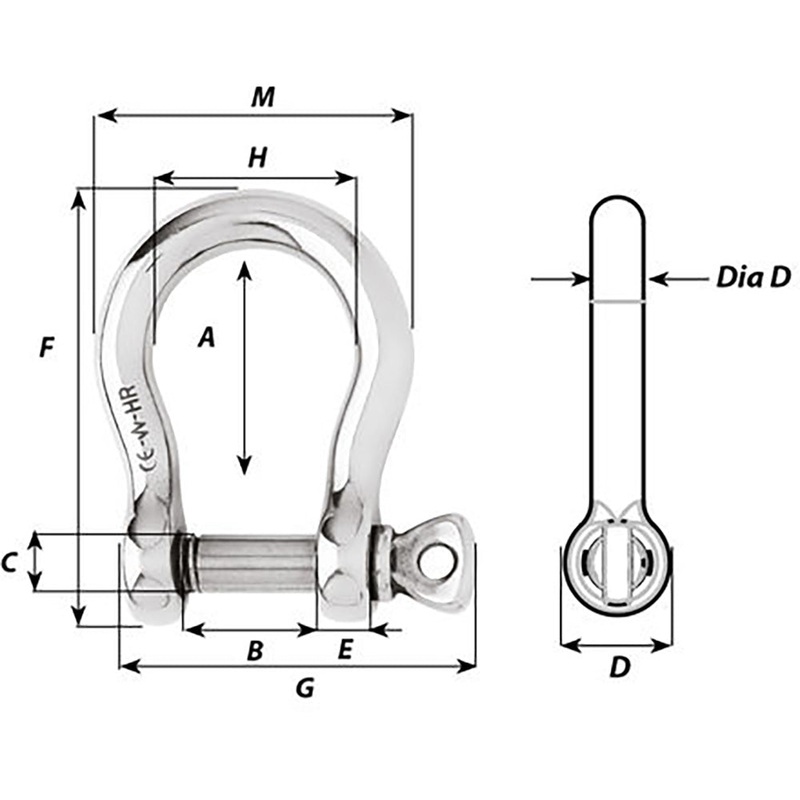

Dimensions:

• A: (inch) 2 31/64″ / (mm) 63
• B: (inch) 1 7/64″ / (mm) 28
• C: (inch) 35/64″ / (mm) 14
• D: (inch) 1 7/64″ / (mm) 28
• D diameter: (inch) 35/64″ / (mm) 14
• E: (inch) 33/64″ / (mm) 13
• M: (inch) 2 53/64″ / (mm) 72

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
