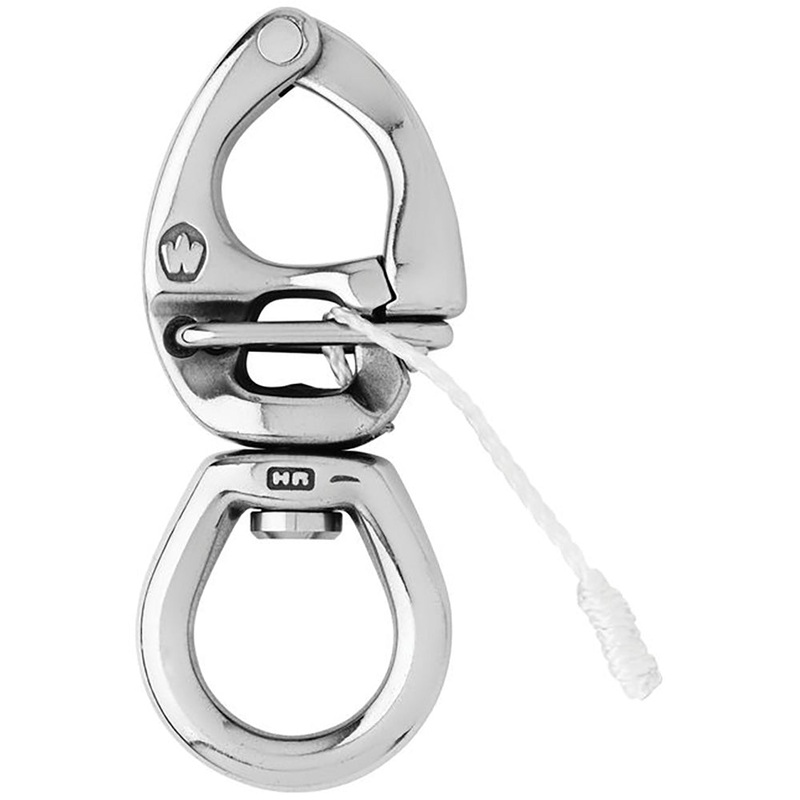

Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length – 6-19/64 [02778]

HR Quick Release Snap Shackle With Large Bail -160mm Length – 6-19/64″

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets…)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets…

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 11460 / (kg) 5200
• Breaking load: (lb) 17630 / (kg) 8000
• Weight: (lb)1.362 / (g) 618

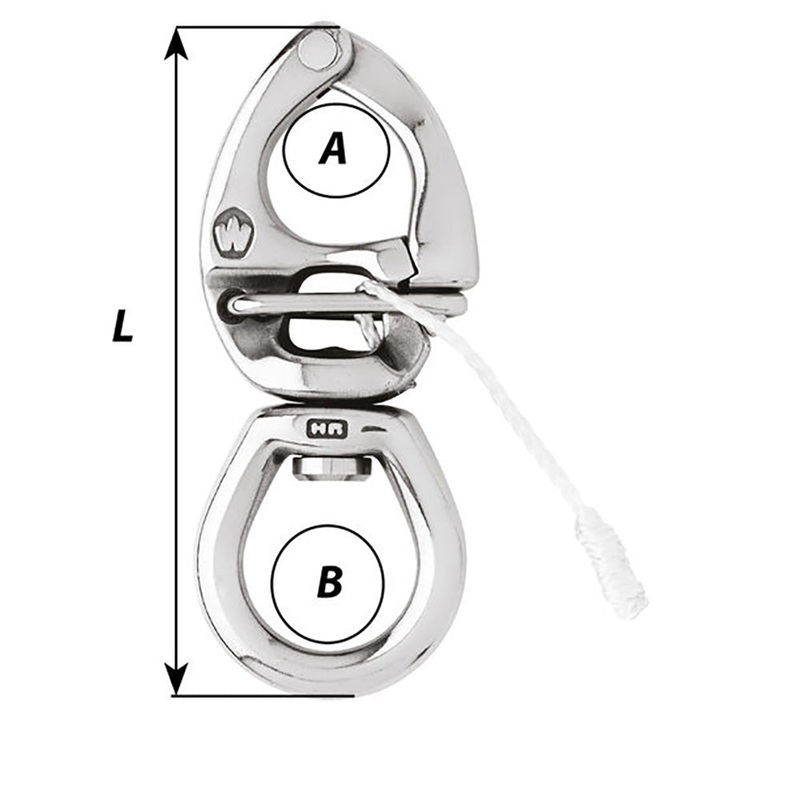

Dimensions:

• A: (inch) 1 11/32″ / (mm) 34
• B: (inch) 1 39/64″ / (mm) 41
• Length: (inch) 6 19/64″ / (mm) 160

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
