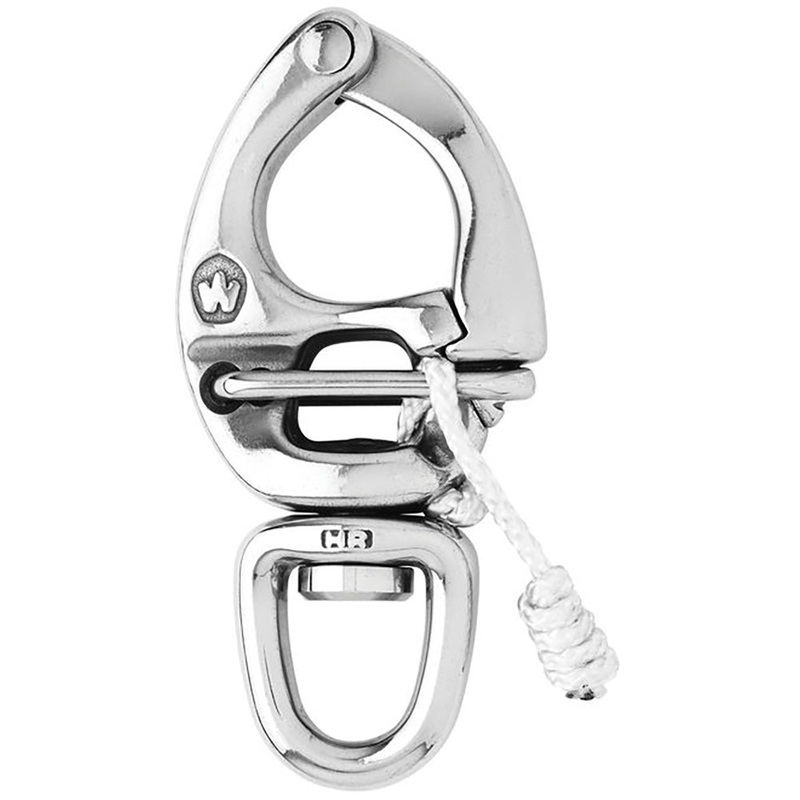

Wichard HR Quick Release Snap Shackle With Swivel Eye – 90mm Length – 3-35/64 [02675]

HR Quick Release Snap Shackle With Swivel Eye – 90mm Length – 3-35/64″

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 3520 / (kg) 1600
• Breaking load: (lb) 7050 / (kg) 3200

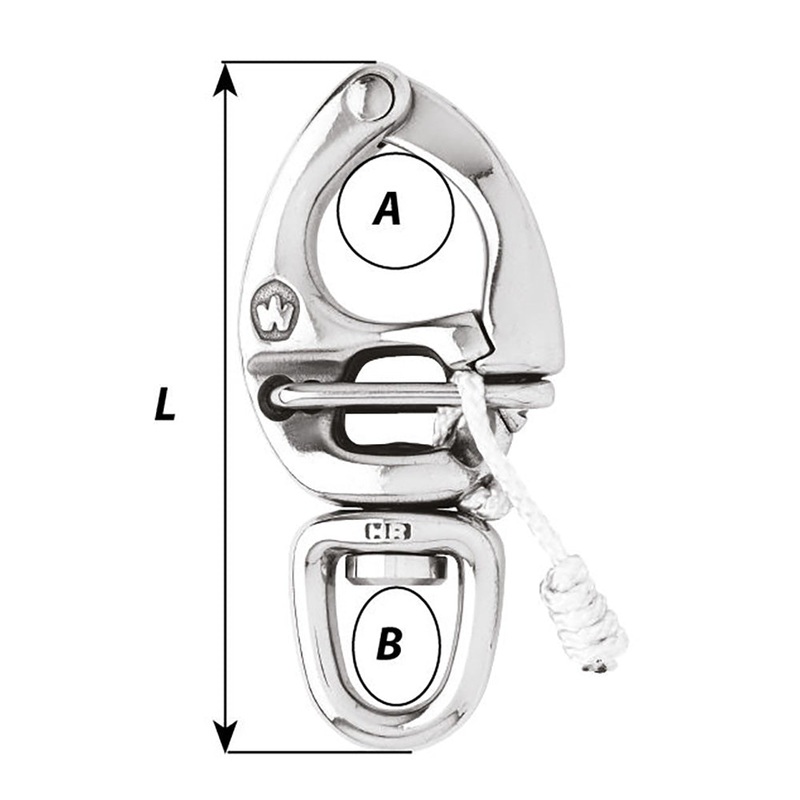

Dimensions:

• A: (inch) 25/32″ / (mm) 20
• B: (inch) 17/32″ / (mm) 13.5
• Length: (inch) 3 35/64″ / (mm) 90

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
