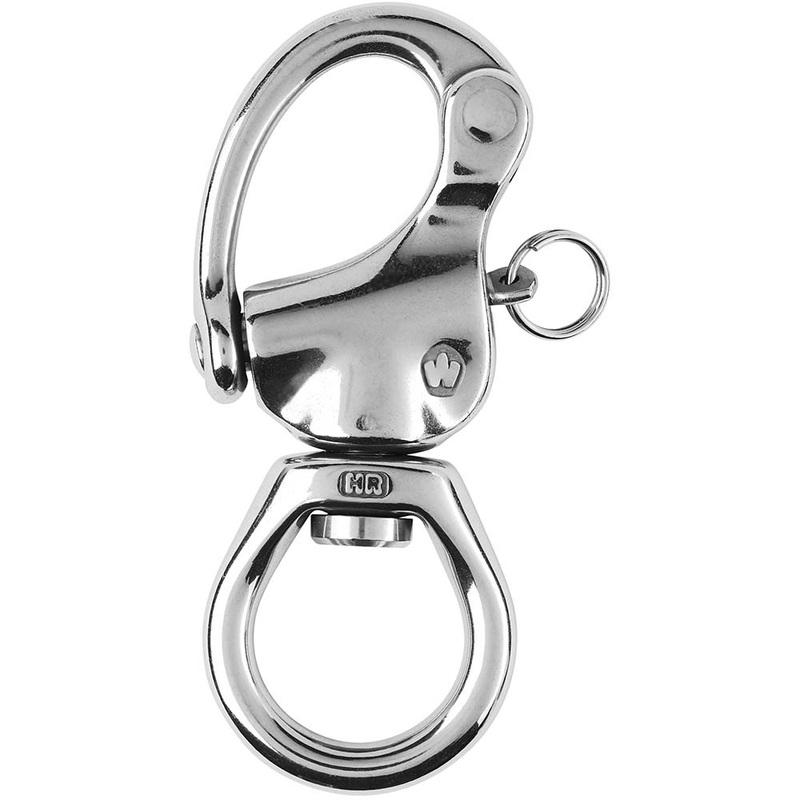

Wichard HR Snap Shackle – Large Bail – Length 80mm [02373]

HR Snap Shackle – Large Bail – Length 80mm

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
• The large eye allows attaching several ropes
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Length (inch) 3-5/32″
• Working load (lb) 2110
• Breaking load (lb) 4400
• Weight (lb) 0.154

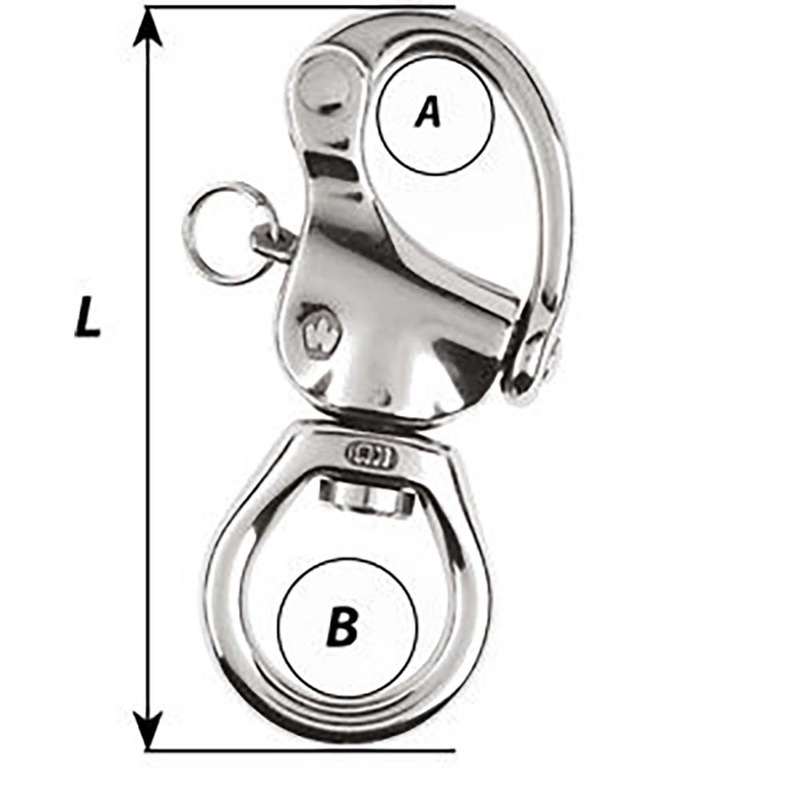

Dimensions (see 2nd image):

• A (inch) 5/8″
• B (inch) 3/4″
