Wichard HR Snap Shackle With Thimble Eye – 110mm Length – 4-21/64 [02495]

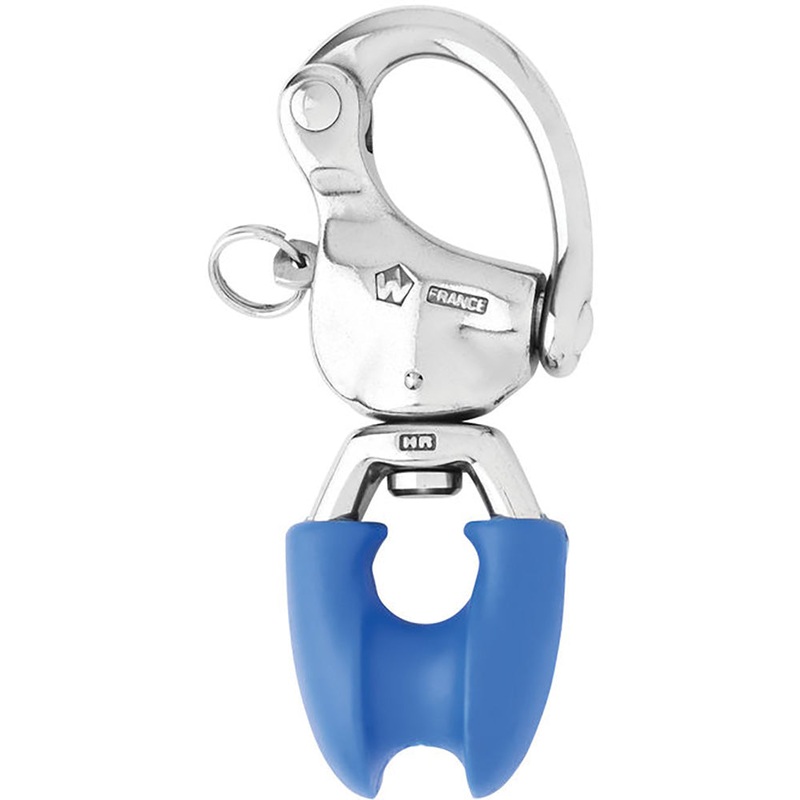

HR Snap Shackle With Thimble Eye – 110mm Length – 4-21/64″

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
• Allows to splice the halyard directly onto the snap shackle (without using a thimble)
• Avoids the wear of the ropes
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications
• Allows to splice the halyard
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 5290 / (kg) 2400

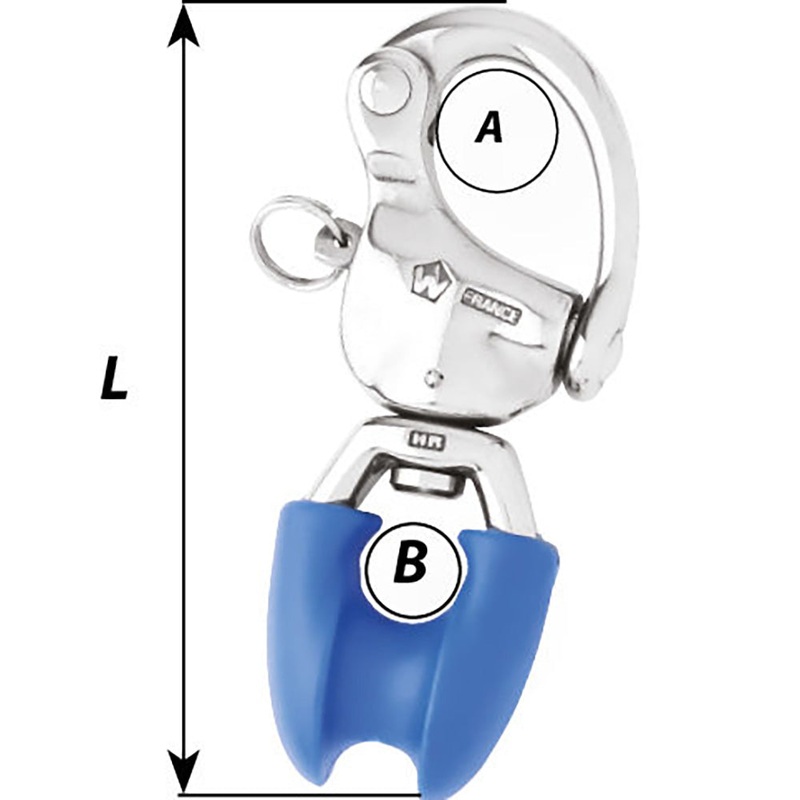

Dimensions:

• A: (inch) 53/64″ / (mm) 110
• B: (inch) 35/64″ / (mm) 21
• Length: (inch) 4 21/64″ / (mm) 14

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
