Wichard Key Pin Shackle – Diameter 8mm – 5/16 [01434]

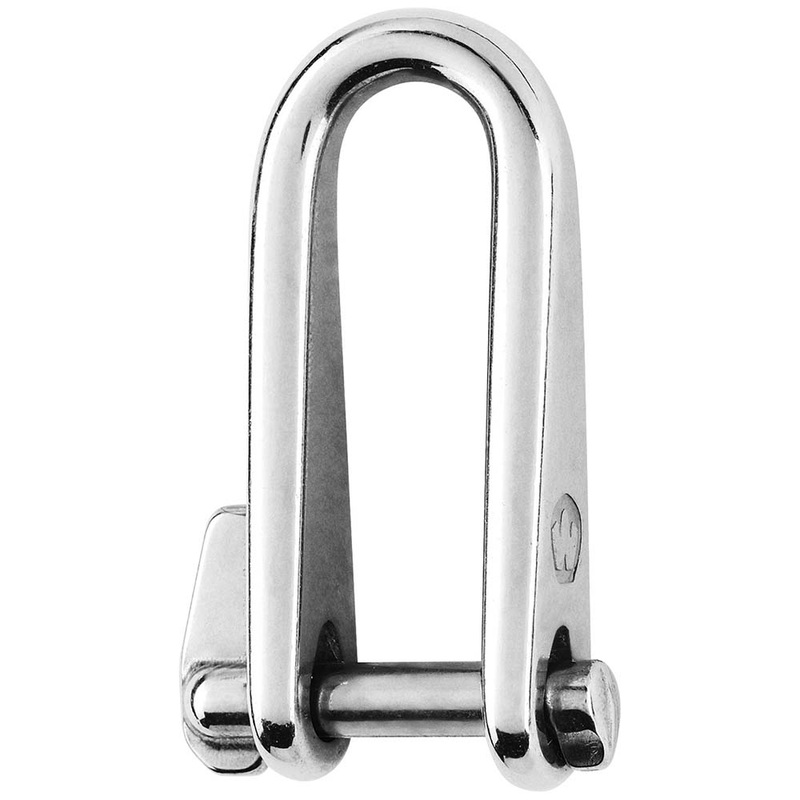

Key Pin Shackle – Diameter 8mm – 5/16″

Features:

• Key pin shackle forged in grade 316L stainless steel
• Opening and closing is done simply by rotating the pin half a turn
• No risk to lose the pin as it remains attached
• Outstanding working and breaking loads

Applications:

• Perfect product for halyards or applications requiring to open /close the shackle often

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1760
• Breaking load (lb) 5070
• Weight (lb) 0.267

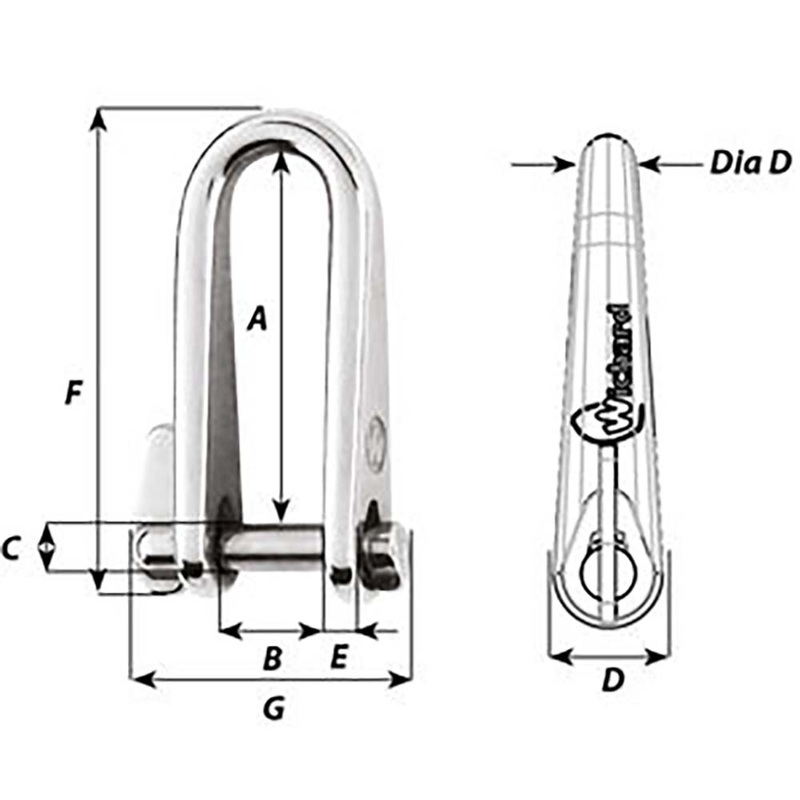

Dimensions (see 2nd image):

• A (inch) 2-21/64″
• B (inch) 53/64″
• C (inch) 5/16″
• D (inch) 43/64″
• D diameter (inch) 5/16″
• E (inch) 15/64″
• F (inch) 3-7/64″
• G (inch) 1-59/64″
