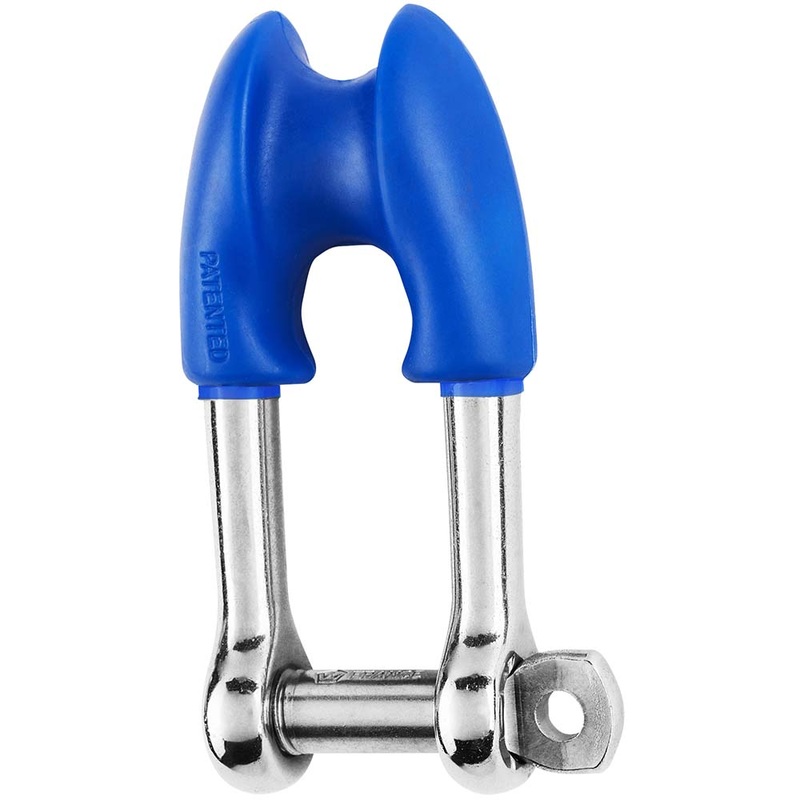

Wichard Thimble Shackle – Captive Pin – Diameter 8mm – 5/16 [01494]

Thimble Shackle – Captive Pin – Diameter 8mm – 5/16″

Features:

• Thimble shackle with captive pin forged in grade 316L stainless steel
• Allows to spliced a rope without adding an additional thimble
• With the captive pin, no risk to lose the pin
• Outstanding working and breaking loads

Applications:

• Mainsheet halyards
• Max rope size: 12mm

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• Breaking load (lb) 6610
• Weight (lb) 0.172

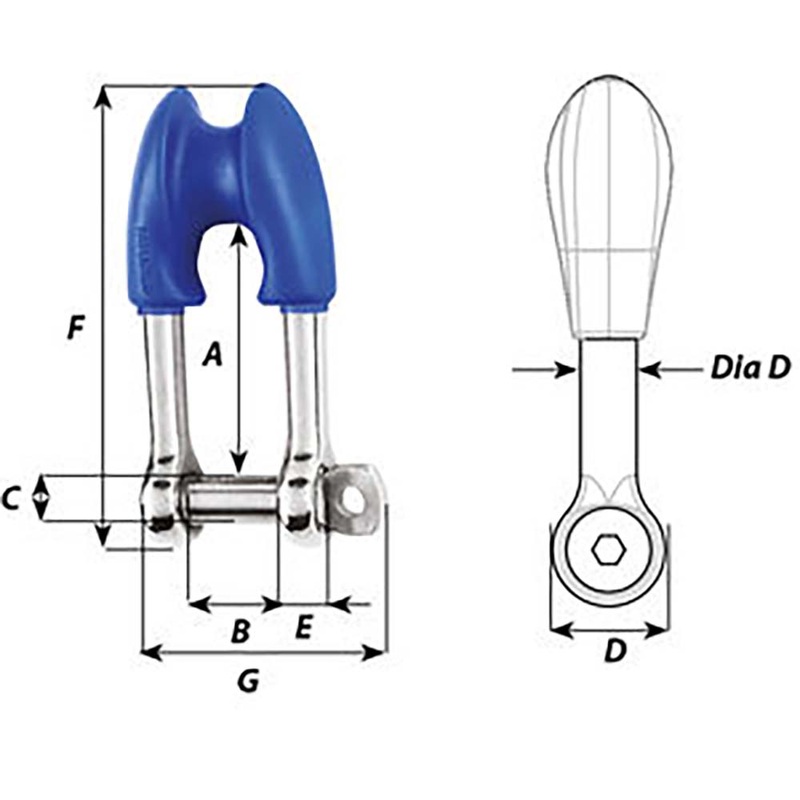

Dimensions (see 2nd image):

• A (inch) 1-39/64″
• B (inch) 5/8″
• C (inch) 5/16″
• D (inch) 5/8″
• D diameter (inch) 5/16″
• E (inch) 9/32″
• F (inch) 2-63/64″
• G (inch) 1-21/32″
