Wichard Webbing Eye Strap – 4mm Diameter – 5/32 – 56mm Spacing – 2-13/64 [09211]

Webbing Eye Strap – 4mm Diameter – 5/32″ – 56mm Spacing – 2-13/64″

Features:

• Drop-forged webbing eye straps with high-quality stainless steel (316L)
• Outstanding strength
• Specific use for webbing

Applications:

• The perfect solution to attach webbing

Specifications:

• Materials: 316L stainless steel grade
• Weight: (lb) 0.015 / (g) 7

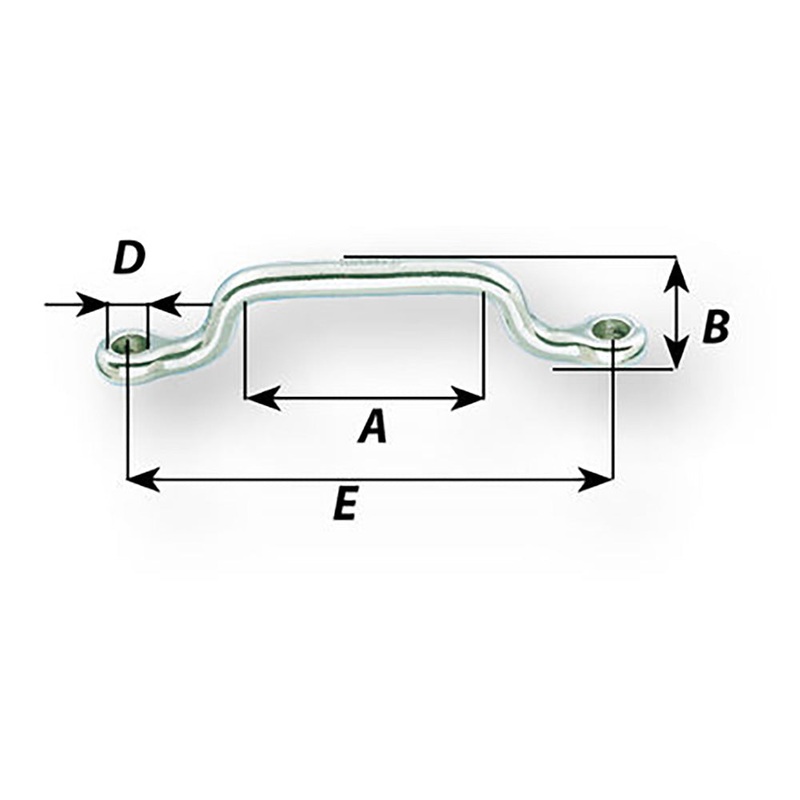

Dimensions:

• A: (inch) 1 7/64″ / (mm) 28
• B: (inch) 13/64″ / (mm) 5
• D diameter: (inch) 5/32″ / (mm) 4
• E: (inch) 2 13/64″ / (mm) 56

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
